IR Spectroscopy principle and applications in pharmaceutical industry

IR Spectroscopy principle and Application:

Here we will learn about what is Infra-Red spectroscopy? IR spectroscopy principle and Applications. IR spectroscopy technique.

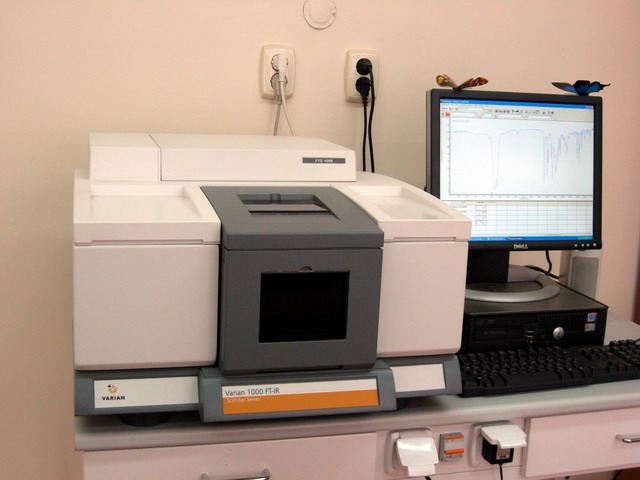

IR spectrometer
IR spectrometer

 While surviving in day-to-day life we all are surrounded by various particles, Waves, rays, radiations which we can not see by the naked eyes. Infra-Red is one of the radiations available in the surrounding which continuously emits from the Sun.


Here we will learn some basics of Infra-red spectrophotometry and that contains:
  1. Background of Infra-red (IR)
  2. Principle of IR spectroscopy
  3. Electromagnetic spectrum range of IR
  4. What is IR spectroscopy?
  5. Application of IR spectroscopy
  6. Is IR radiation are Harmful
  7. Difference between IR and FTIR


1. Background of Infra-red (IR):

In the 17th century, the great scientist Mr.William Herschel (1738-1822) has started the study of light generated from stars. In his experiment, Mr. William used different color filters in his telescope to study light. In his study hi found that rays are passed from the different color has different light intensity and according to intensity, filters are warmed. He experience that red color light is warmer than the other colors. He started to investigate the temperatures of different color and why the red color is warmer than other colors.
       William knows that sun rays are a mixture of different colors and decided to use a prism (a glass which can separate the mixtures of Sunrays) in his experiment for separation of colors. When sun rays passed through the Prism it absorbs sun rays and separates in different colors. Hi kept a thermometer in front of every color and measure every color temperature. Mr.William observed that the violet color is the coolest color than the other and red is the hottest in all. Furthermore hi observed that the color towards red is in increasing order. (Sunrays mixture of colors: Violet->Indigo->Blue->Green->Yellow->Orange->Red).
          Accidentally after red color, one more thermometer was there outside of this sunrays mixture (besides red color). Surprisingly hi observed that the thermometer which is kept outside is more honest than red. He concluded that some invisible light exists outside the mixture. The invisible light exists outside the mixture of color hi called these rays as a “Calorific Rays.”
      Today we called these calorific rays as infra-red
Here you can see the experiment of Herschel to measure the temperature of different colors through a thermometer.



Infrared

2. Basic principle of IR Spectroscopy (Infra-Red spectroscopy):

The Infrared spectroscopy is a vibrational energy level changes when radiation passes through the material.

The infrared spectroscopy is also known as vibrational spectroscopy. Infrared spectroscopy is based on the absorption or transmission of radiation.

3. Electromagnetic spectrum range of IR:

In the electromagnetic spectrum, their scanning range lies in between microwaves and visible scanning range. The electromagnetic spectrum of IR is divided into three different ranges according to their functionality.
  1. Near IR ranges from 14000cm-1 to 4000cm-1 (0.7- 2.5 micrometer)
  2. Mid IR ranges from 4000cm-1 to 400cm-1( 2.5 – 25 micrometer)
  3. Far IR ranges from 400cm-1 to 0cm-1 (25 – 1000 micrometer)
 The electromagnetic spectrum is a wide spectrum range it starts from radio waves and ends on Gamma rays. Total 7 electromagnetic waves are available. Those areas:


Radio waves> Which gives us instant communication eg. Mobile tower.

Microwaves-> Data and Heat eg. Microwave oven.

Infrared-> It gives invisible heat eg. TV remote light.

Visible light-> The light which we can see. eg Rainbow.

Ultraviolet light-> Energetic Light eg. Sun.

X-ray-> Penetrating Radiations eg. X-Ray photos.

Gamma rays-> Can destroy living cells, Nuclear energy eg. Citi scan.

4. What is IR spectroscopy:

    IR spectroscopy is a common technique to identify the functional group of the material. This technique is based on the absorption, emission, or transmission of light. When IR rays passed through the material some of the radiation is absorbed by the material, some is reflected, and some are transmitted from the material. When rays are passed through the material it absorbs rays and produces a sharp valley and when rays are transferred through the material it produces a straight line which means when the valley produces it indicates vibrational energy level changes.

There are two major types of vibrations :

1 Stretching and 2. Bending vibration


1. Stretching vibration:

stretching vibration is nothing but the vibration changes in bond length. Or variation in bond distance cause due to vibration.

   There are two types of stretching vibration: i. Symmetric vibration ii. Asymmetric vibration.

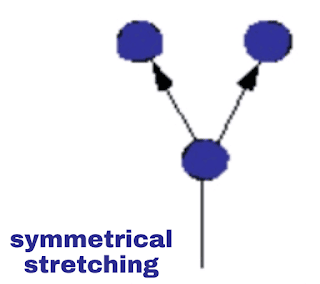

i. Symmetric vibration:

In symmetric vibration, two or more bonds are vibrated in or out together. This means both the molecules come towards the central atom and go away together from the central atom in the same direction. As shown below image.




Symmetric
Symmetric vibration

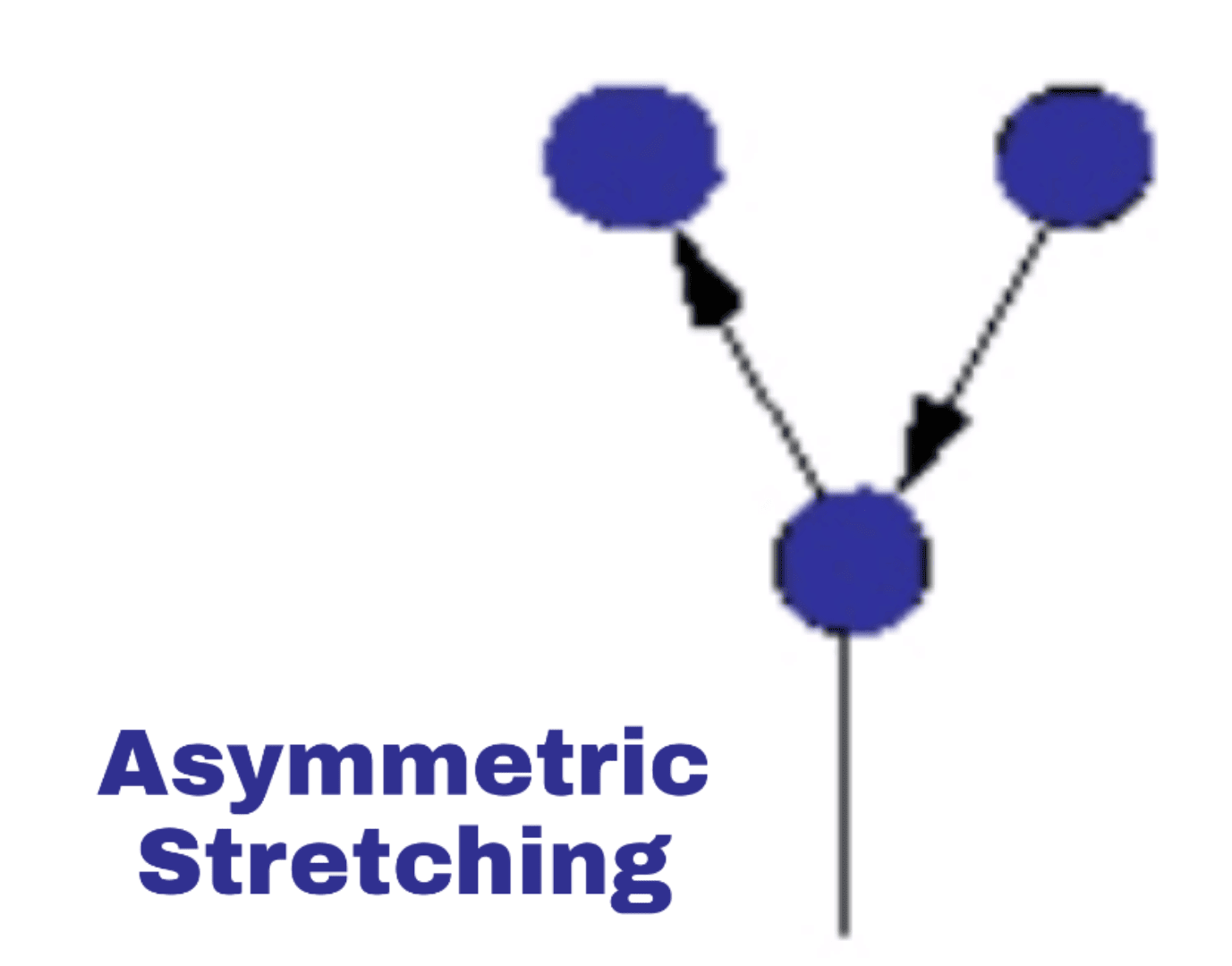

ii. Asymmetric vibration:

In asymmetric vibration one bond is vibrated shorten and the other is longer. Means one molecule comes towards the central atom while the other is go away from a central atom in the same direction. As shown in the image.

Asymmetric vibration
Asymmetric vibration

2. Bending vibration:



It is a variation in the angle of bond cause due to vibration.
There are four types of bending vibration:
i. Scissoring, ii. Wagging, iii Rocking, iv.Twisting

Scissoring and rocking are in a plane vibration and wagging and twisting are out of plane vibration.


i. Scissoring vibration:

This is in-plane vibration. In this vibration, both molecules will be on the same distance from the atom but both molecules will come close to each other and away from each other. Eg. as scissors. Just have a look at the shown image.



Scissoring vibration
Scissoring vibration


ii. Rocking vibration:

This is also a plane vibration. In this vibration both the molecule are on equal distance from atom and both are swing in a plane direction and back in same direction. Here in image you can see.

Rocking vibration
Rocking vibration

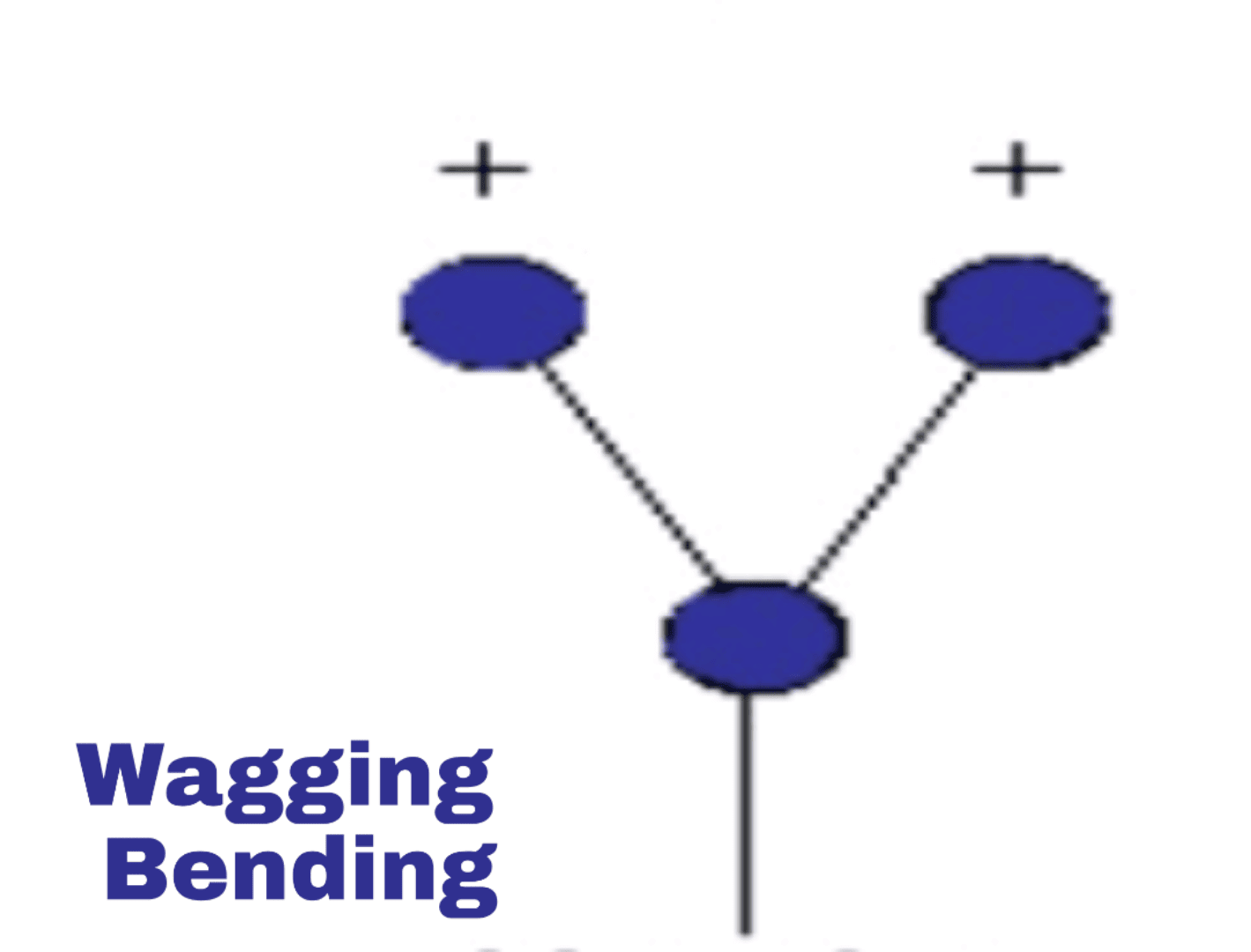

iii. Wagging vibration:

This is out of plane vibration. In this vibration both the molecule will be on same distance from atom but both will move together out of plane from the atom. As shown in the image.

Wagging vibration
Wagging vibration

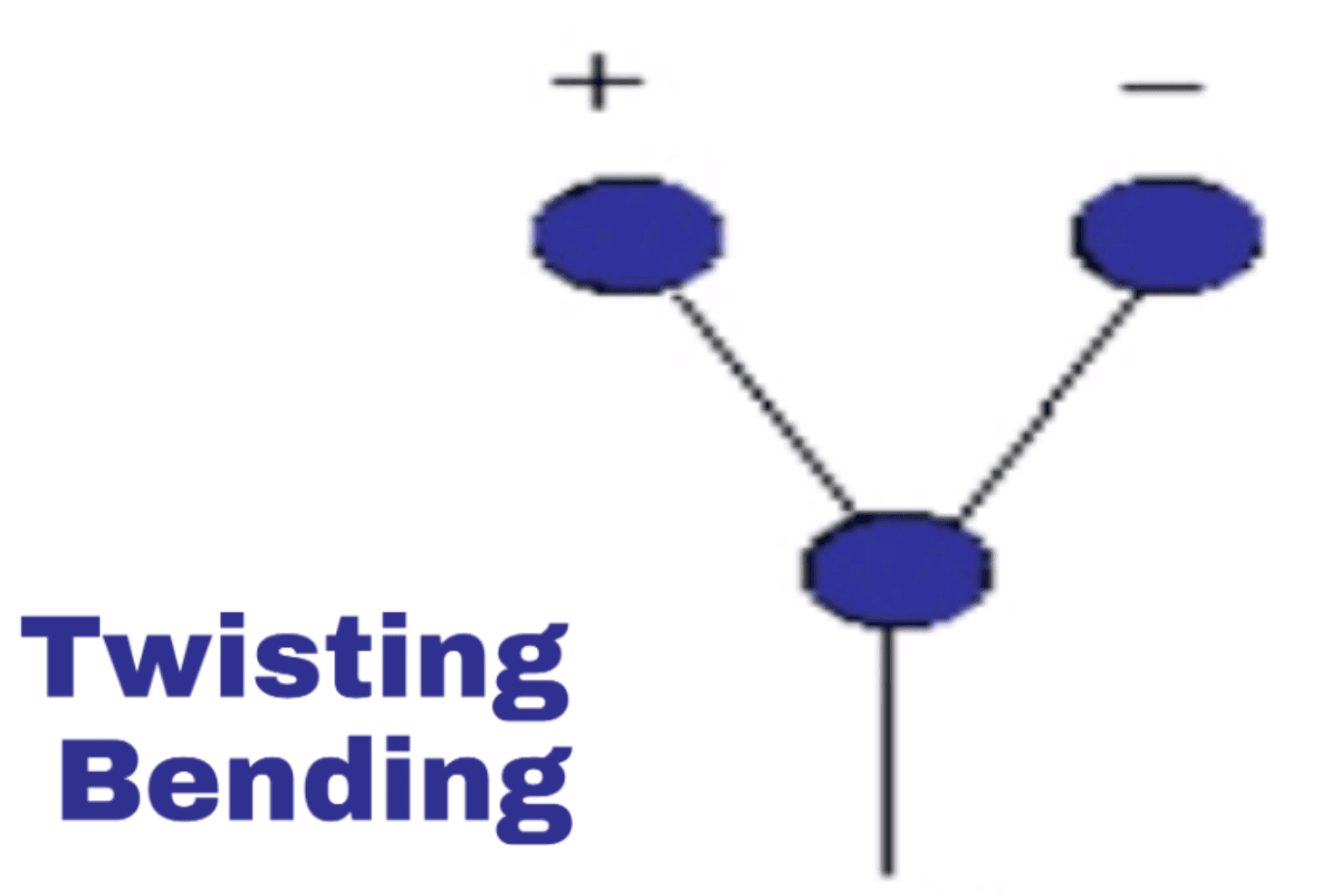

iv. Twisting vibration:

This is also out of plane vibration. In this vibration, molecules are moving out of a plane from atom but not in together. Refer to the below-shown images.

Twisting vibration
Twisting vibration



Does Infrared have color?

The infrared is out of visible spectromagnetic range, it does not having any colour but by applying certain artificial condition it can be visible.

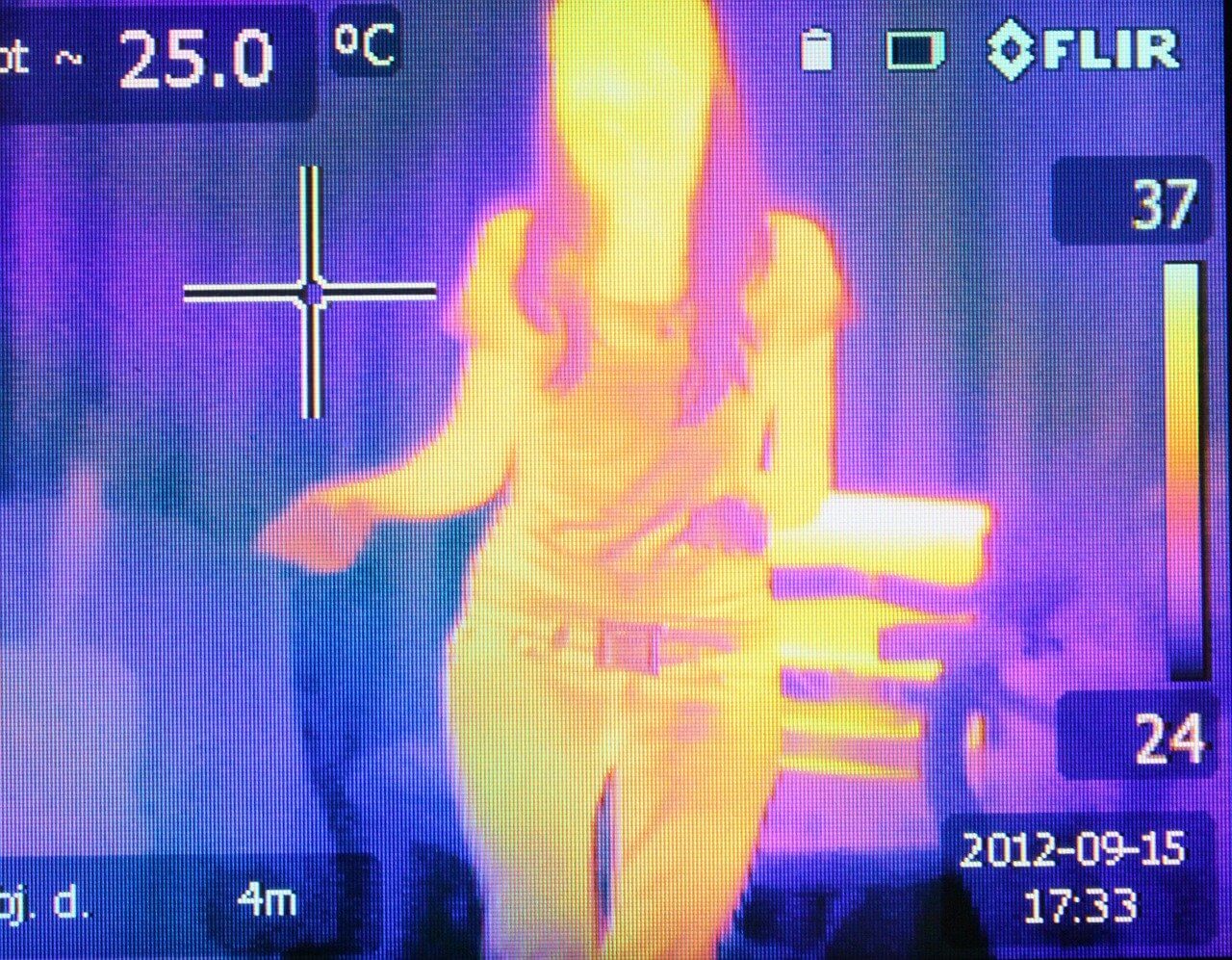

The TV remote is the best day to day life example. Press any button of remote and hold the mobile camera in front of the TV remote light. Impression can be seen on the mobile display. Here is an image of infrared.

IR image of Human Being
IR image of Human Being

Region in IR (Mid IR) spectroscopy:

Two types of the region in IR spectroscopy

i.Functional group region ii. Fingerprint region

i. Functional group region identifies individual peak and it is easy to identify the peak in this region. ( Equal or greater than 1500 cm-1)

ii. Fingerprint region is having multiple peaks so it is complicated to identify peaks in this region. ( Less than 1500cm-1)


Calculation of wavelength or wavenumber:

The calculation of wavelength or wavenumber can be done by this equation.

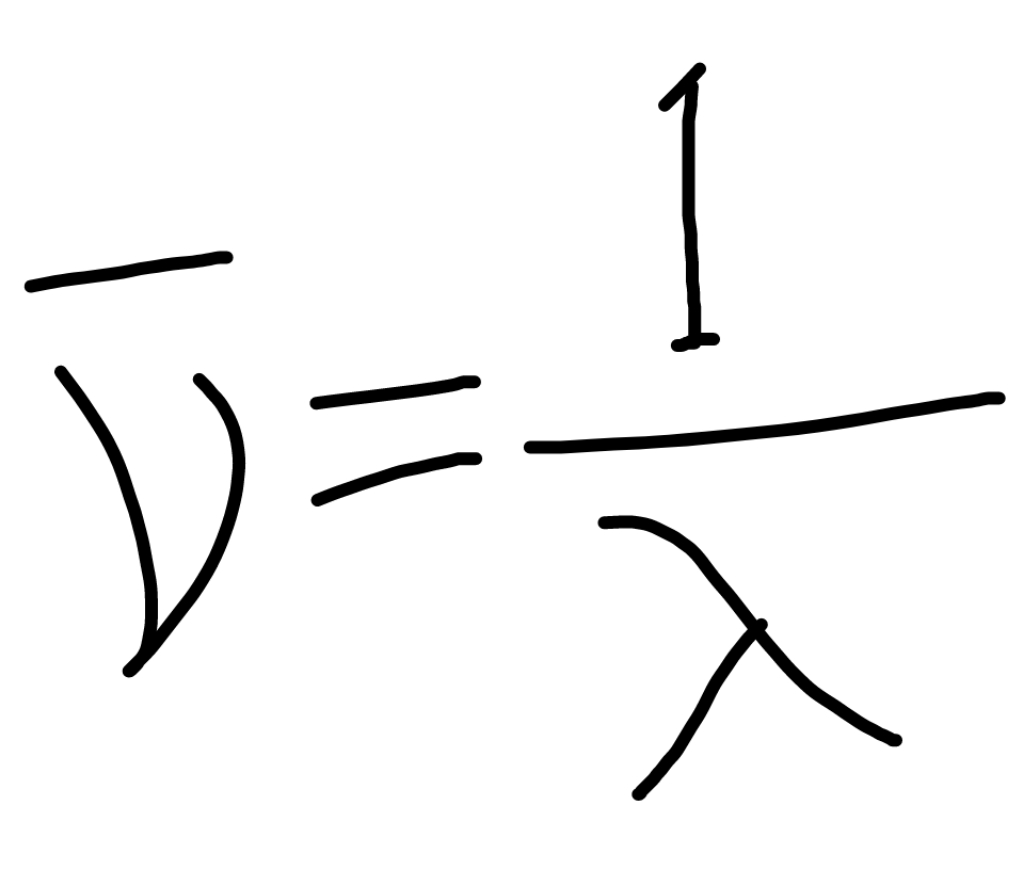

Wave number calculation
Wavenumber calculation equation

neu= denotes wave number
Lambda= denotes wavelength

There is a relation between the wavelength and wavenumber, as per the above equation

Wave number is inversely proportional to the wavelength.

wavenumber can calculate if the wavelength is known.
And the unit of measurement is cm-1.



Why KBr is used in IR and not water?



In IR spectroscopy KBr does not show any peaks and the dipole moment of KBr is Zero in this region, due to this reason KBr is used as a reference.
In IR spectroscopy water shows two strong peaks and water is a strong polar solvent, due to this reason water is not suitable for IR spectroscopy.


Lamp Used in IR Spectroscopy:

In IR spectroscopy three types of lamp can be used as per their scanning range

For Near IR Tungsten halogen lamp
For Mid-IR Nernst flower or Globar
For Far IR High-pressure mercury lamp

5. Application of IR spectroscopy:

  1. IR spectroscopy is mainly useful for organic and inorganic chemistry.
  2. IR spectroscopy is used in the pharmaceutical industry for functional group identification.
  3. Useful for food analysis.
  4. Useful for petrochemical engineering
  5. Useful for the polymer industry.
  6. Nanoscale semiconductor
  7. Space exploration


6. Is IR radiation are harmful:

Yes, IR radiation is harmful to a human being if continuously come in contact with skin. It damages to tissues and may cause skin cancer. It impacts on eye lens or cornea.




7. Difference between IR and FTIR:



1. IR stands for infrared and FTIR standard for Fourier transform infrared.
2. IR having a single beam or double beam while FTIR having an interferometer.
3. IR is a slow and imprecise method while FTIR is a fast and precise method as compared to IR.
4. IR having fix mirror which produces only constructive interference while FTIR having two mirrors ( Fix and Moving) which can produce constructive as well as destructive interference.

Additional information:

What is Constructive interference?
The FTIR is having two mirrors one is fixed and the other is a moving mirror. Both the mirrors on equal path distance. When infrared light hits the beam splitter, the splitter splits the rays. some rays are transferred towards fix mirror and some reflect towards moving mirrors and when rays come back from mirrors to beam splitter they make the same path difference with equal time and forms constructive interference.



FTIR
FTIR


What is destructive interference?

When rays are splits from the beam splitter, transferred towards the fixed mirror and reflected towards the moving mirror. But here the moving mirror moves back and makes more distance than fix mirror. when rays come back from mirrors to the beam splitter, the rays from moving mirrors take more time and they make path difference and time variation in such case they form destructive interference.




Conclusion:

In this article, we learn about what is IR Spectroscopy, IR spectroscopy Principle and application, types of IR, Electromagnetic range of IR Spectroscopy.


Reference:
USP general chapter 854 represents IR spectroscopy ( Mid IR)

Also read:

X-Ray diffraction

ICH Quality guideline in Shortcut

Thanks for Reading IR spectroscopy principle and application article
